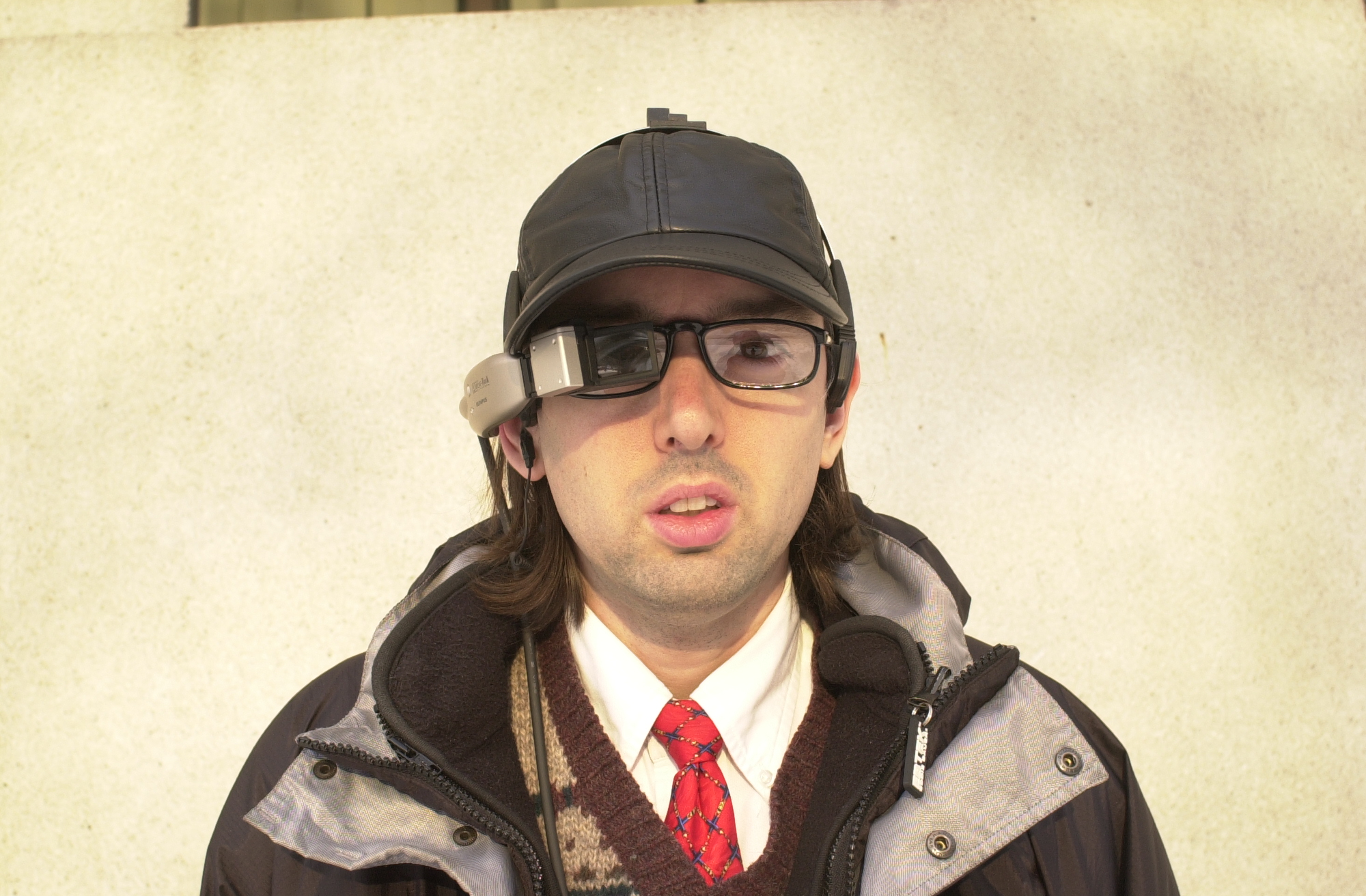

Preferably, the brim of a baseball cap can be used to shield stray light from getting into the space between the eye and the display:

. This shielding tends to improve image contrast, especially with the small fonts and fine image details possible with a high resolution display.

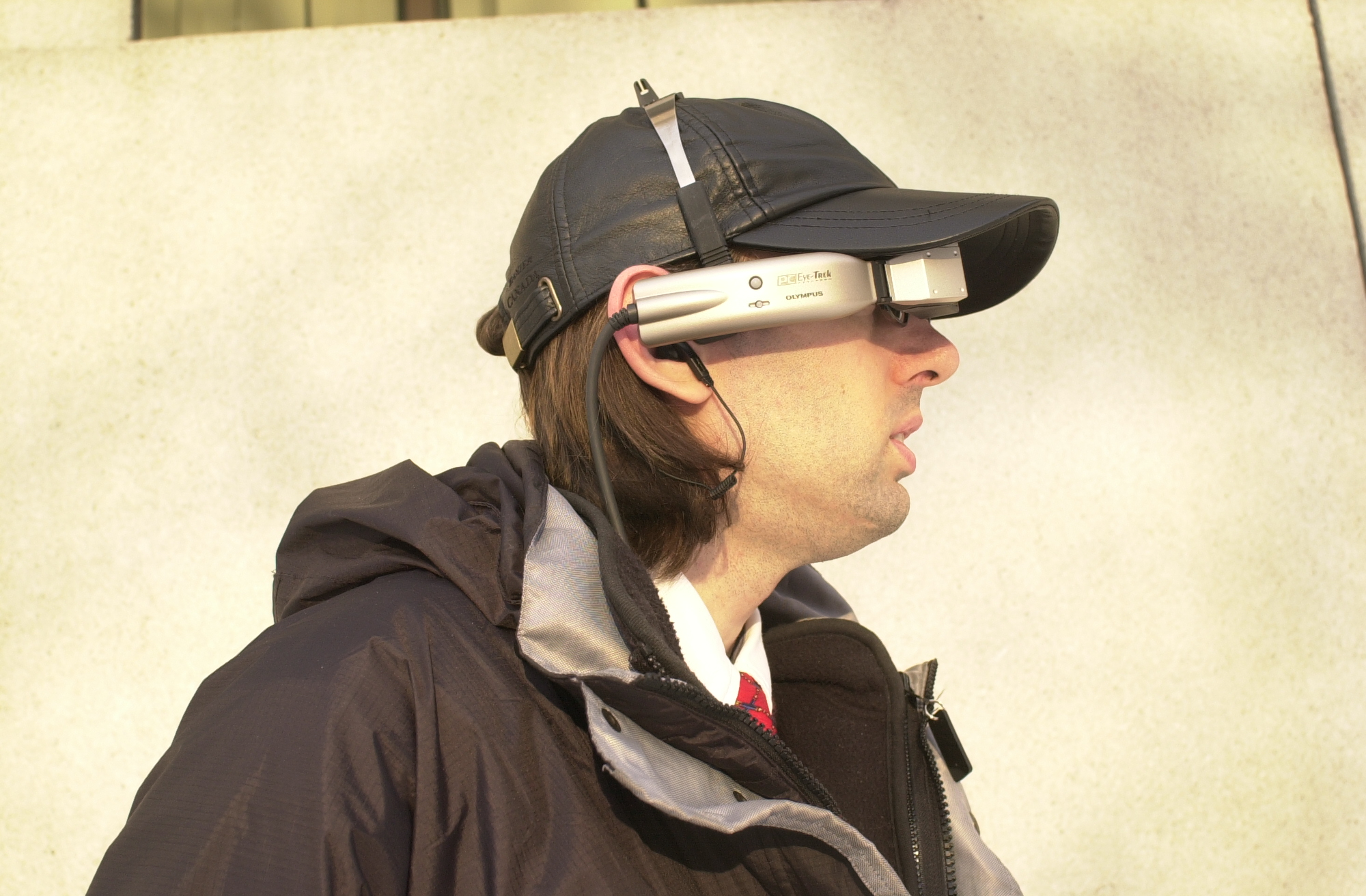

Here is a side view of the display, while being worn by the author:

The display is small and lightweight enough to be used in ordinary life:

Here is a closeup of the display and the display adapter:

.

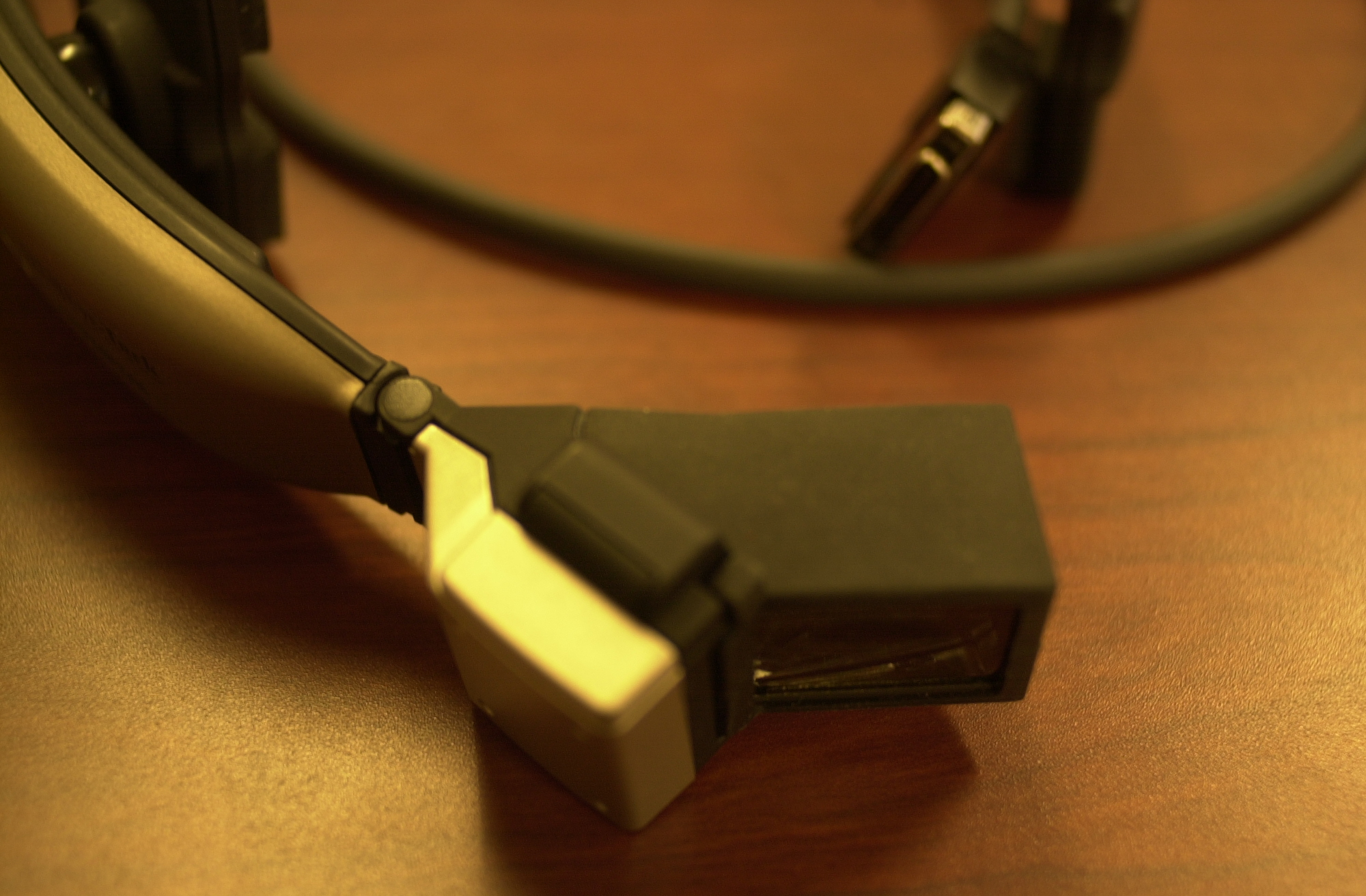

Here is a closeup of the eyepiece:

.

The eyepiece is transparent so that the wearer can see through it:

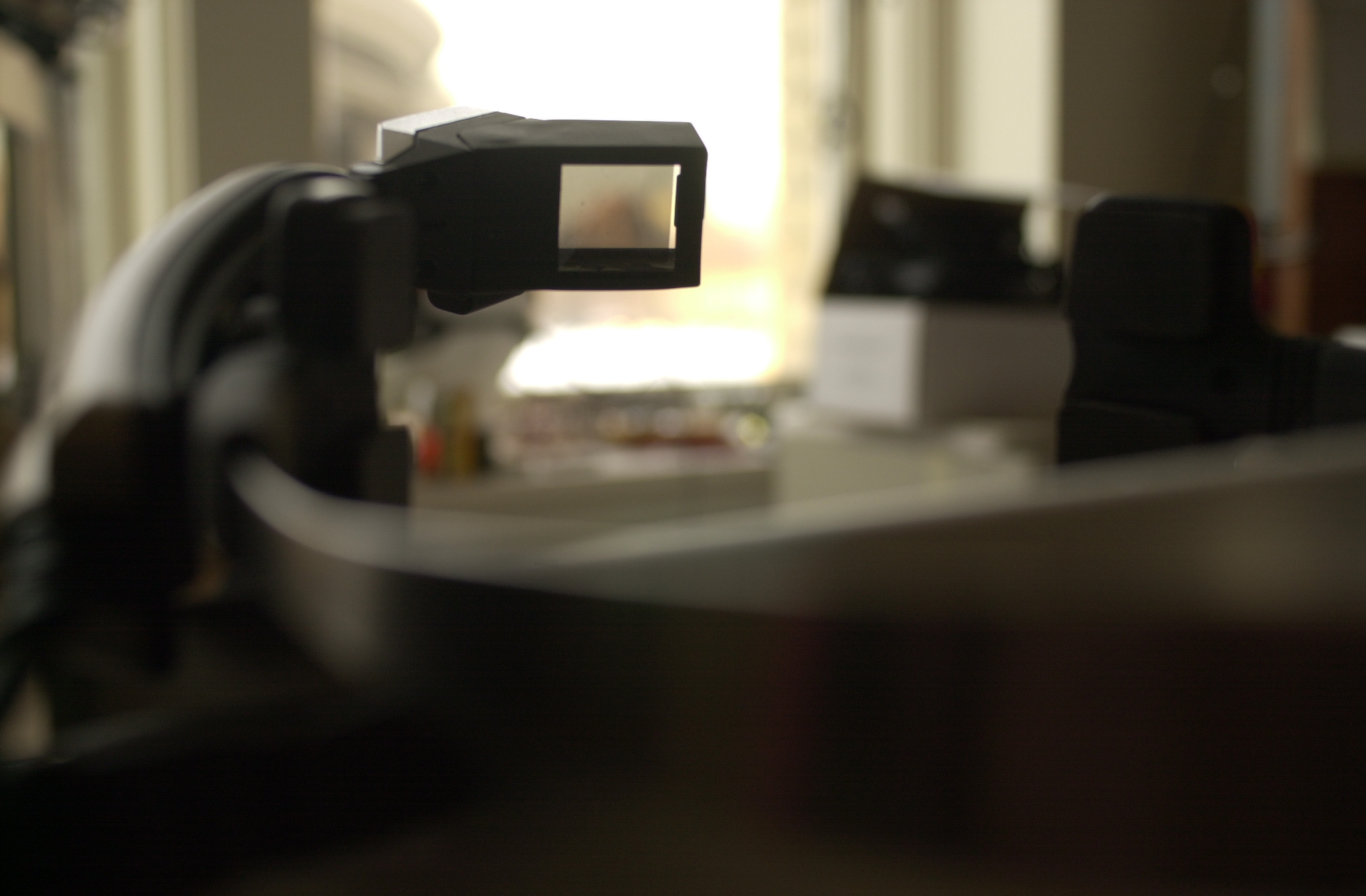

(here is a closeup view looking through the eyepiece).

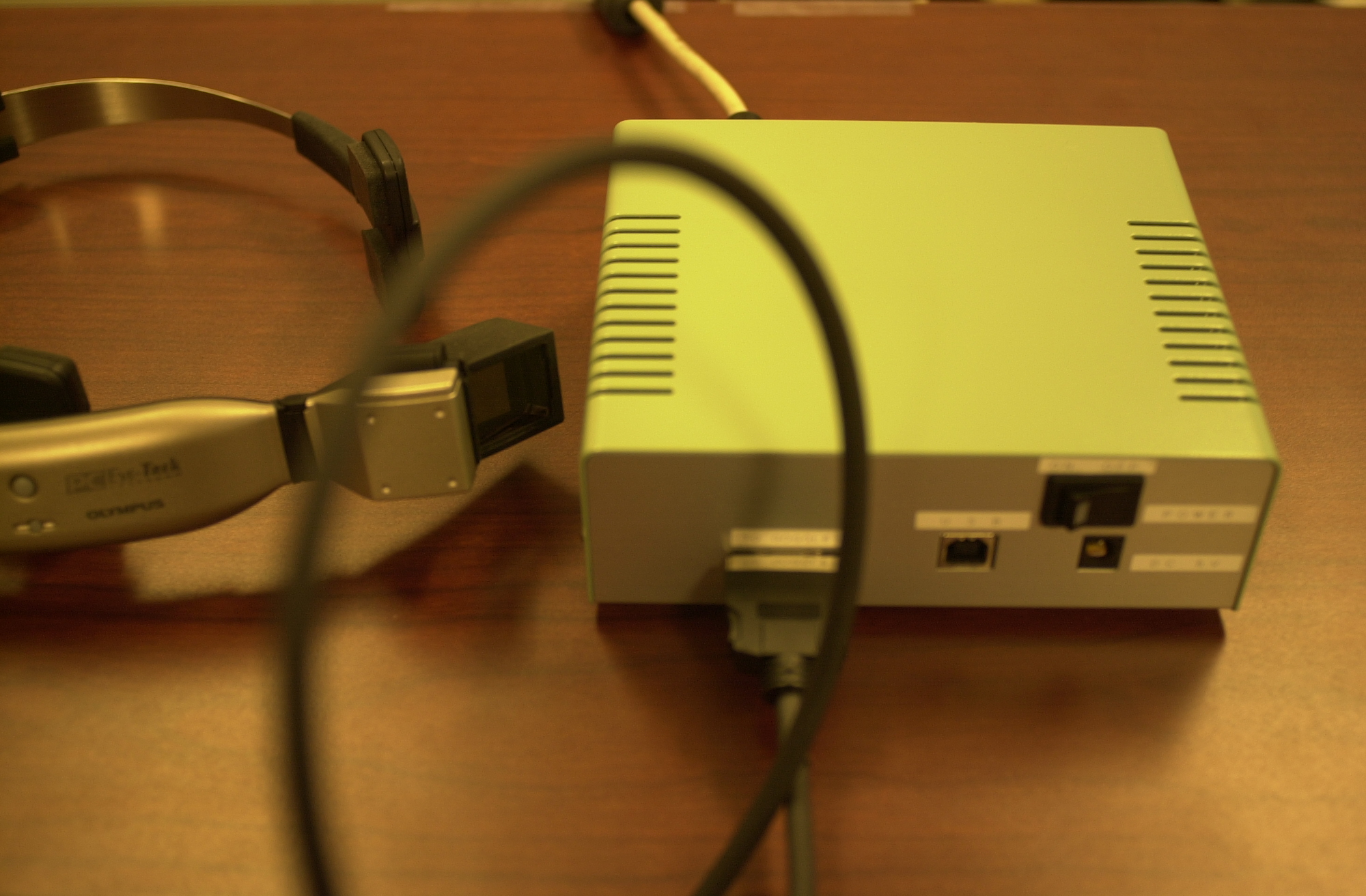

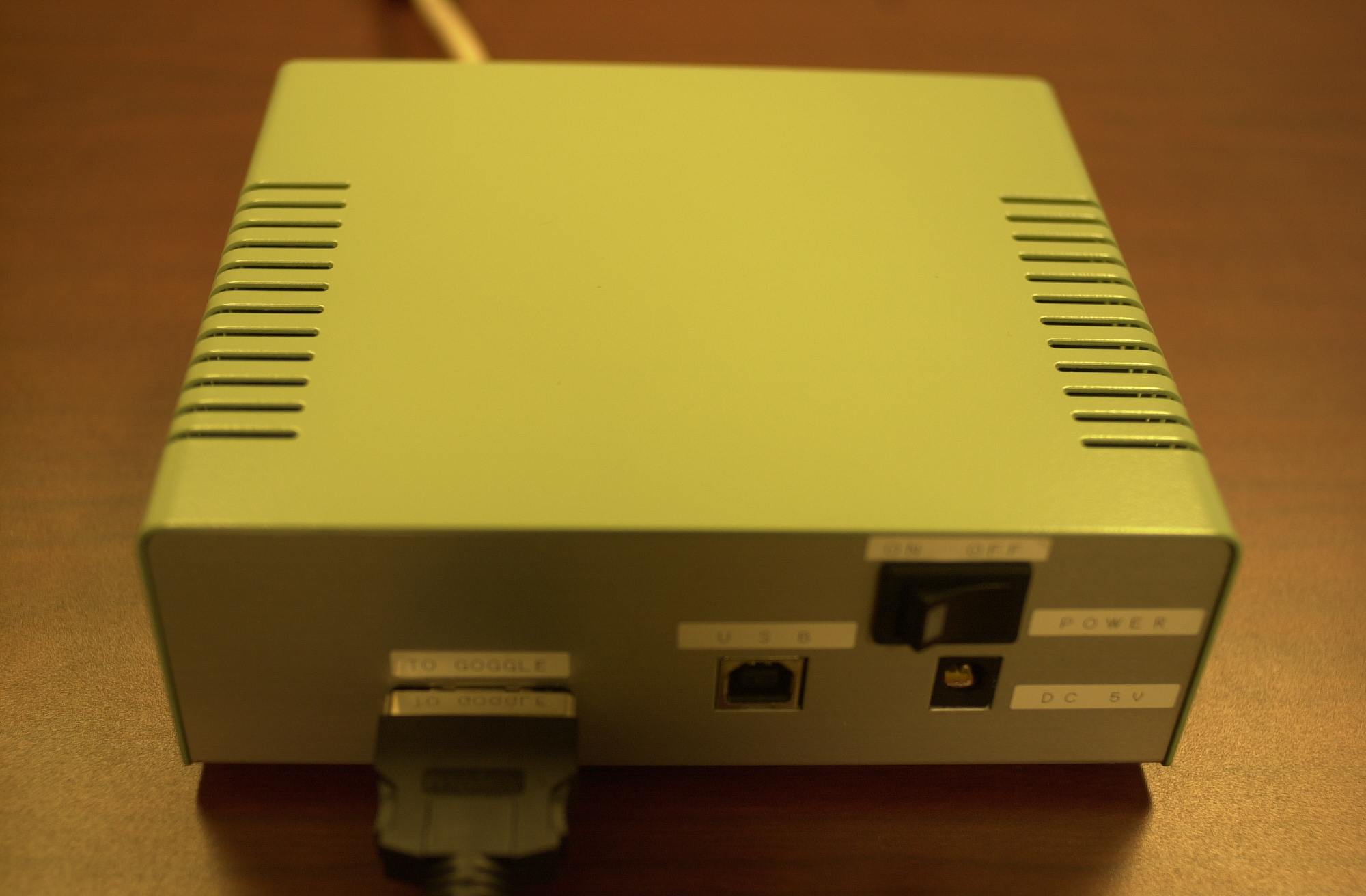

A small drawback is that the display does not accept a wide variety of standard formats. Do not expect to be able to directly watch a baseball or hockey game or custom video on the display, or to directly plug in a camera for using the display as a viewfinder. If you want to watch NTSC video, IEEE 1394 video, or other similar formats, you will likely want to run these signals through your WearComp first. Fortunately there is provided a converter box:

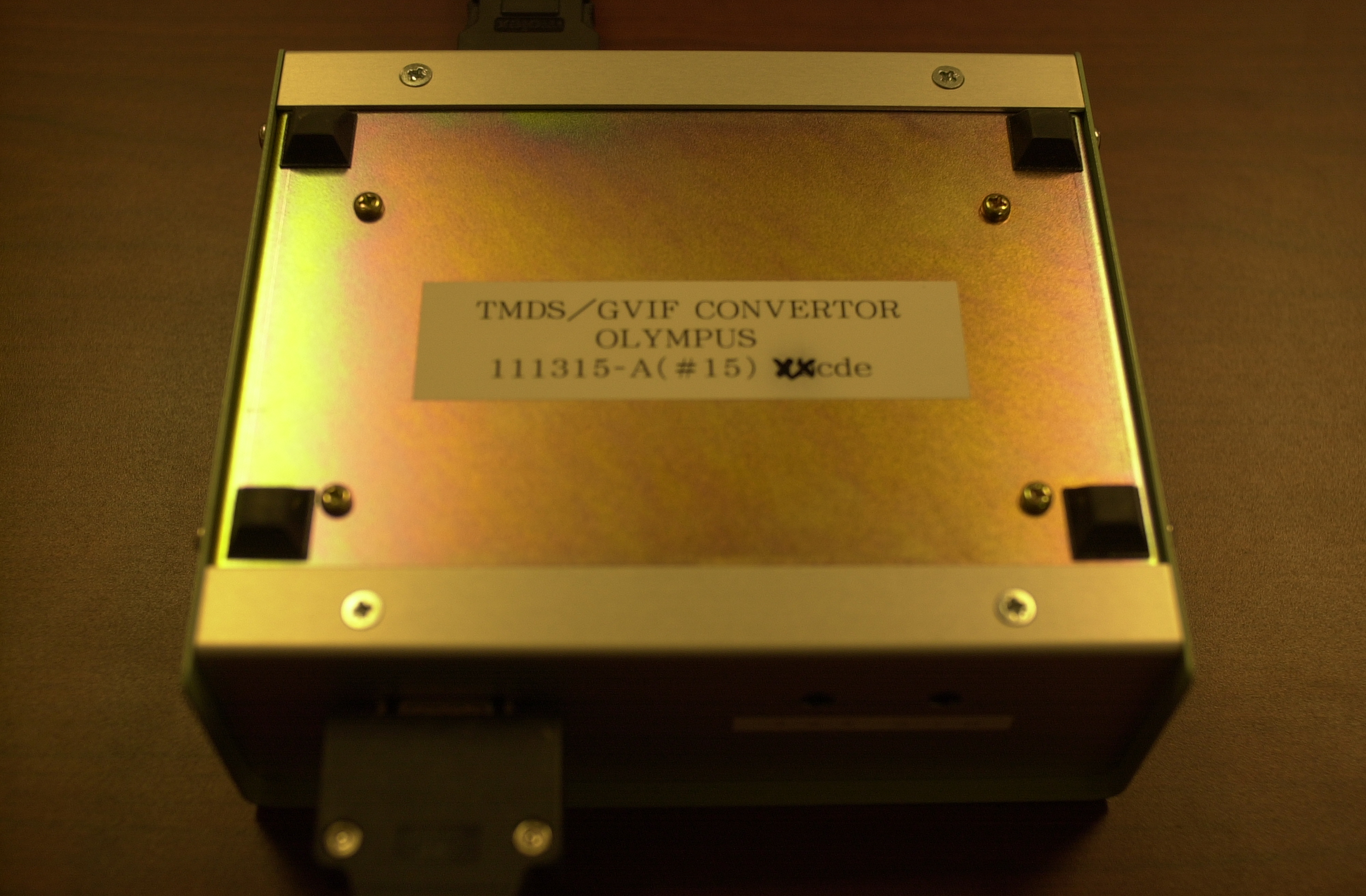

and the labeling on the bottom of the converter box shows the formats involved:

.

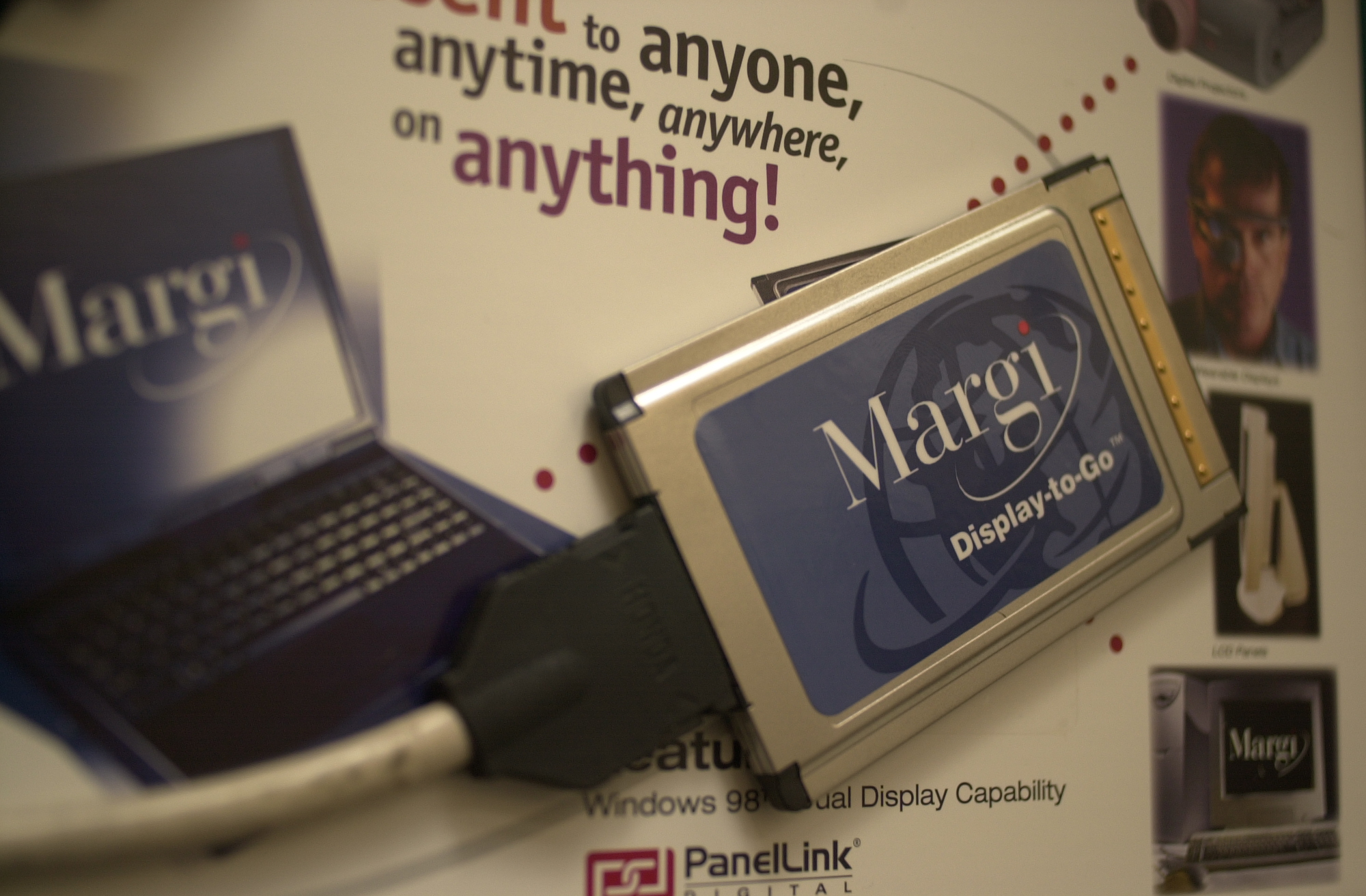

The device may be connected to a small WearComp such as the Xybernaut MA IV, by way of a suitable PCMCIA card supplying the needed video format, such as can be provided by this product:

.
